Finding the correct size set screw for a Delta shower handle is a common plumbing challenge that can halt a simple bathroom repair. Most Delta shower handles utilize a specific 1/4-28 x 5/16″ or a #10-24 x 1/2″ stainless steel cup point set screw, depending on the exact model and manufacturing year. Identifying the precise dimensions and thread pitch is crucial to securely fastening the handle to the valve cartridge without stripping the threads.

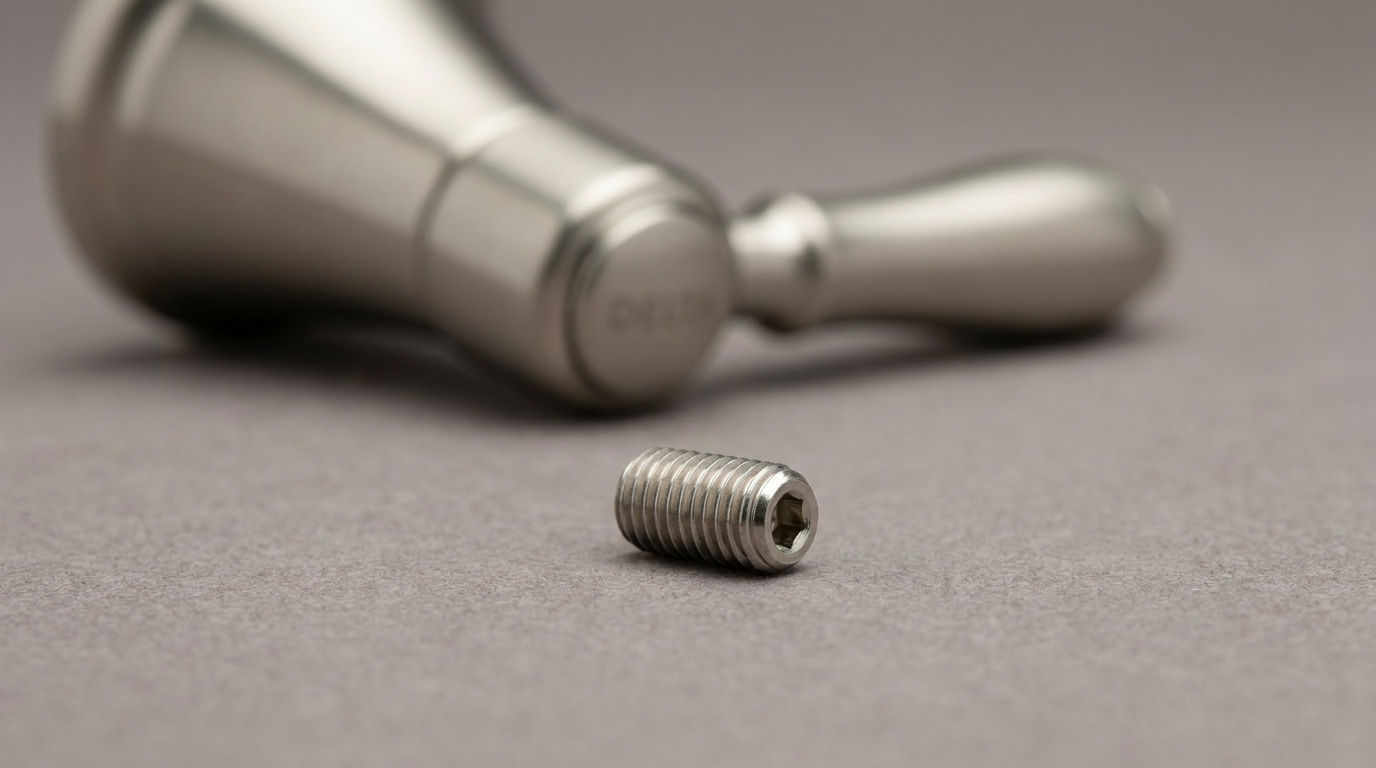

What is set screw for delta shower handle?
A set screw for a Delta shower handle is a small, headless fastener designed to secure the handle to the internal valve stem. Typically requiring a 1/8-inch or 3/32-inch Allen wrench, this essential component prevents the shower handle from slipping or detaching during daily temperature and water flow adjustments.
Hardware Specifications
Understanding the exact dimensions of these fasteners ensures a proper fit. Delta has used a few standard sizes across their product lines over the decades to accommodate different cartridge stems.
Based on our internal data and market analysis, here is the breakdown:
| Delta Handle Type | Standard Set Screw Size | Allen Wrench Size Required |
|---|---|---|
| Modern Single-Handle | 1/4″-28 x 5/16″ | 1/8″ Hex |
| Older/Classic Models | #10-24 x 1/2″ | 3/32″ Hex |
| Monitor 14 Series | 1/4″-28 x 5/16″ | 1/8″ Hex |
NTSS Pro Tip: Always plug your shower drain with a towel or stopper before removing or installing a set screw. These tiny fasteners are notoriously easy to drop and lose down the plumbing.

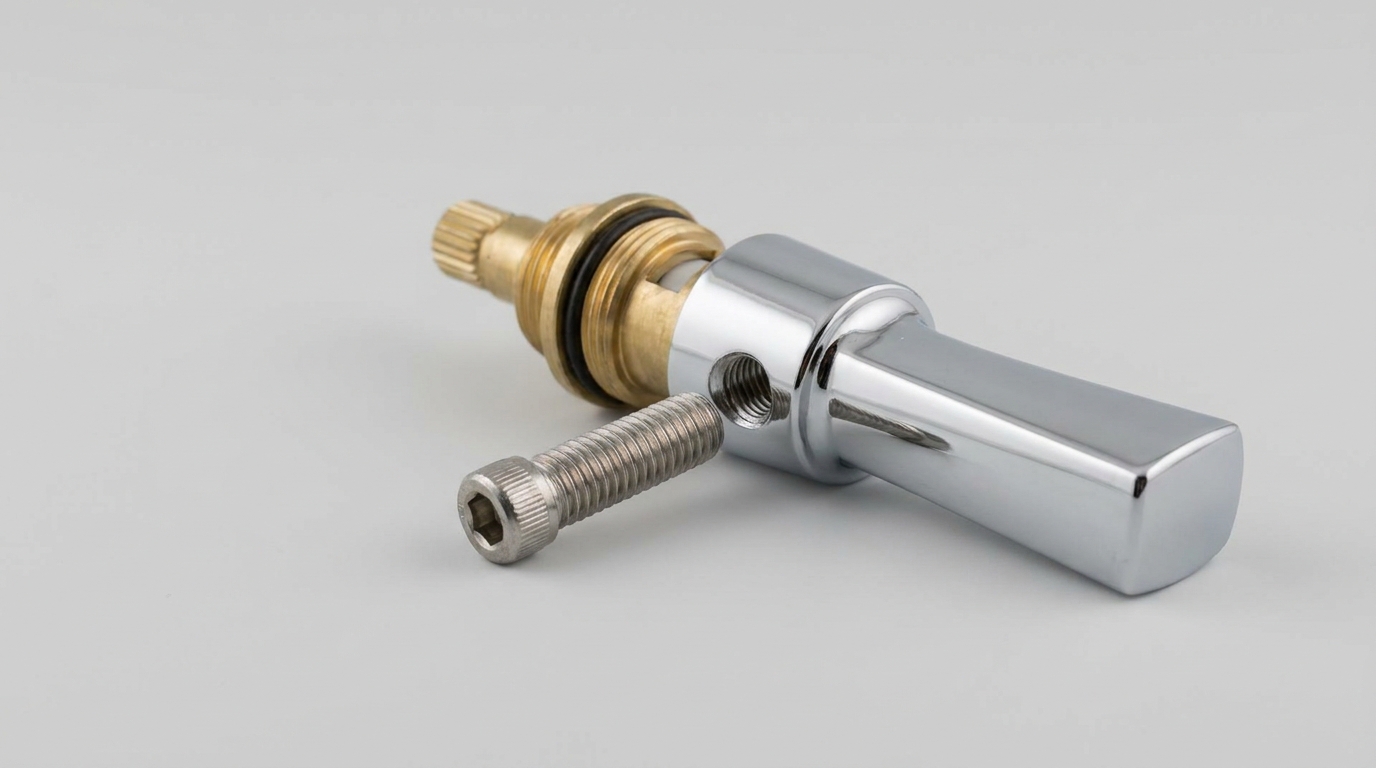

How Does set screw for delta shower handle Work?
The set screw works by threading through the metal or plastic base of the shower handle and applying direct compressive pressure against the flat side of the brass valve stem. This mechanical friction locks the handle in place, translating your turning motion directly to the internal water mixing cartridge.
The Mechanical Fastening Process
The mechanics behind this small piece of hardware rely on precision threading and point style. Most of these screws feature a “cup point” which digs slightly into the brass stem for maximum holding power. how the mechanism functions:
- Alignment: The handle is pushed onto the grooved or flat-sided D-broach stem.
- Threading: The screw is driven into the pre-tapped hole on the handle’s underside.
- Engagement: The cup point makes contact with the flat portion of the valve stem.
- Locking: Final torque creates a friction lock, eliminating any rotational play.
NTSS Pro Tip: Do not overtighten the screw, especially on plastic cartridges. Excessive torque can crack the handle base or strip the delicate brass threads of the valve stem adapter.

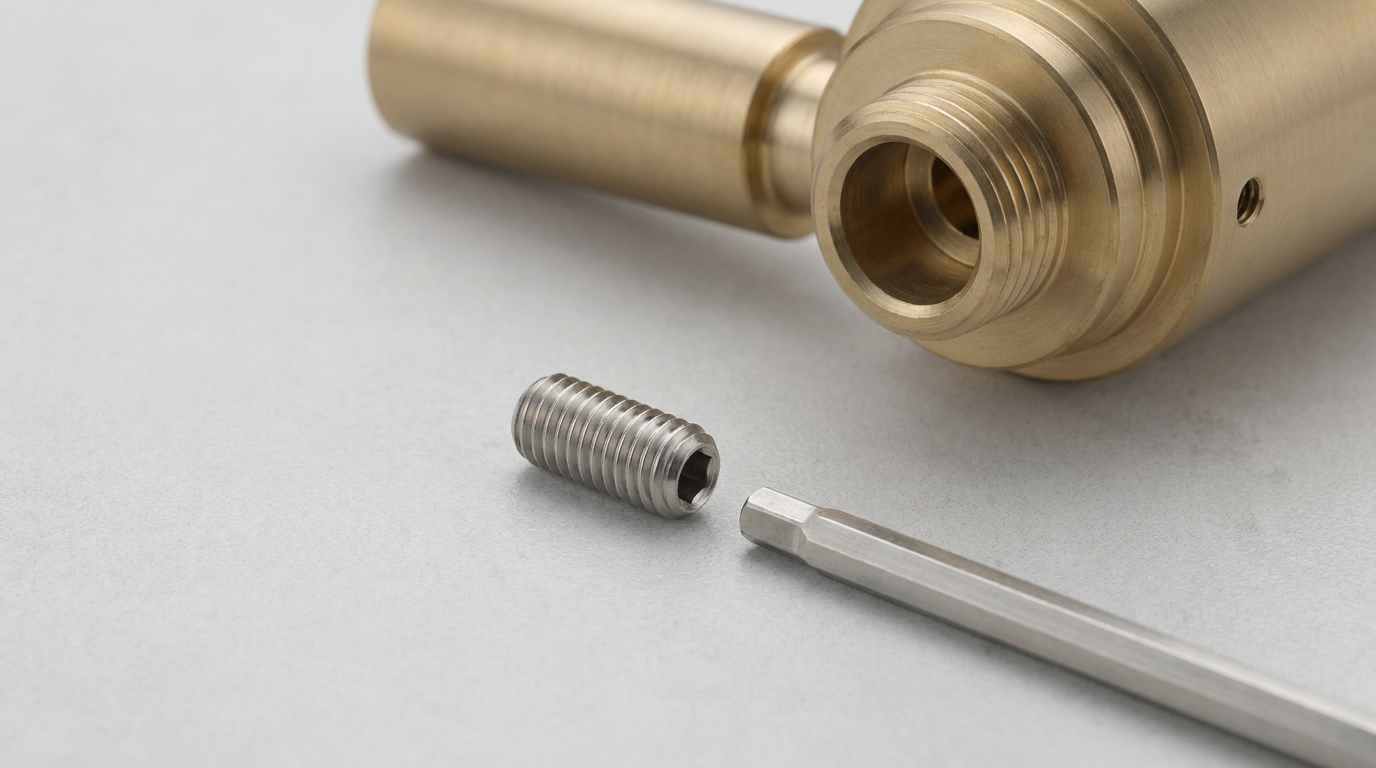

What are the benefits of set screw for delta shower handle?
Using the correct set screw for a Delta shower handle ensures a rigid, wobble-free connection that enhances the longevity of the entire valve assembly. It provides reliable mechanical retention, resists loosening from daily vibrations, and allows for straightforward disassembly when cartridge maintenance is eventually required.
Advantages of OEM-Spec Fasteners
While it might be tempting to use any screw that fits, utilizing the exact specified hardware yields significant long-term benefits for your plumbing fixtures.
- Corrosion Resistance: Genuine or high-grade replacements are made of stainless steel to withstand constant moisture.
- Perfect Thread Match: Eliminates the risk of cross-threading the handle’s tapped hole.
- Optimized Grip: The specific cup-point design prevents the handle from gradually sliding off the stem.
- Aesthetic Concealment: The headless design ensures the screw sits flush or countersunk, maintaining the handle’s sleek appearance.
NTSS Pro Tip: Applying a tiny drop of non-permanent (blue) threadlocker to the screw threads can prevent it from backing out over time due to the constant turning and vibrating of the shower handle.
How to maintain a set screw for delta shower handle?
Maintaining a set screw for a Delta shower handle involves periodic inspection for rust, gentle retightening to secure the handle, and applying anti-seize compounds. Routine maintenance prevents the screw from calcifying or seizing inside the handle, which can make future cartridge replacements incredibly difficult.
Preventative Maintenance Steps
Because bathrooms are high-humidity environments, these small fasteners are prone to galvanic corrosion and mineral buildup. Following a simple maintenance routine will save you from having to drill out a stripped screw later.
- Annual Inspection: Check the underside of the handle once a year for signs of loose hardware or hard water crust.
- Vinegar Soak: If mineral deposits are visible, apply white vinegar with a Q-tip to dissolve calcium before attempting to turn the screw.
- Proper Tooling: Always use a crisp, un-rounded Allen wrench (usually 1/8″) to avoid stripping the hex drive.
- Lubrication: Coat the threads with a dab of waterproof silicone grease or anti-seize before reinstalling.
NTSS Pro Tip: If your Allen wrench slips even slightly, stop immediately. Place a wide rubber band over the tip of the hex key to gain extra grip on a partially stripped screw head.
What is the price of set screw for delta shower handle?
The price of a replacement set screw for a Delta shower handle typically ranges from $2 to $6 at local hardware stores or online retailers. Purchasing a complete Delta handle repair kit, which includes the screw, wrench, and button cover, usually costs between $8 and $15.
Pricing and Availability Analysis
The cost of this component is negligible, but acquiring the exact size can sometimes be tricky. You generally have three purchasing avenues, each with different price points and conveniences.
Based on our internal data and market analysis, here is the breakdown:
| Purchasing Option | Average Cost | Pros | Cons |
|---|---|---|---|
| Single Loose Screw (Hardware Store) | $1.00 – $3.00 | Very cheap, instant availability | Hard to find exact thread pitch |
| OEM Delta Repair Kit (RP26865) | $8.00 – $12.00 | Guaranteed fit, includes Allen wrench | Higher cost for a single screw |
| Assorted Set Screw Kit (Online) | $10.00 – $15.00 | Provides multiple sizes for future use | Leaves you with unused hardware |
NTSS Pro Tip: Instead of buying a single screw, invest in a stainless steel set screw assortment box. For a few dollars more, you will have the exact replacement for virtually any faucet or shower handle in your home.
Key Features & Comparison
Comparing set screws for Delta shower handles reveals that material composition and point style are the most critical features. Stainless steel variants outperform zinc-plated options by resisting corrosion, while cup-point designs offer vastly superior vibrational resistance compared to flat-point screws.
Material and Design Comparison
Selecting the right replacement involves looking beyond just the thread size. The material and the tip design dictate how well the screw will perform over a decade of daily showers.
Based on our internal data and market analysis, here is the breakdown:
| Feature Category | Standard Steel (Zinc Plated) | 304 Stainless Steel (OEM Spec) | Brass |
|---|---|---|---|
| Corrosion Resistance | Low (Will rust over time) | High (Impervious to normal moisture) | Medium (Can tarnish/oxidize) |
| Tensile Strength | High | Very High | Low (Prone to stripping) |
| Grip Style | Flat Point (Can slip) | Cup Point (Bites into valve stem) | Cone Point (Can damage stem) |
| Expected Lifespan | 2 – 4 Years | 10+ Years | 5 – 7 Years |
NTSS Pro Tip: Always verify that your replacement screw is 304 or 316-grade stainless steel. A rusted set screw will permanently fuse to the handle, forcing you to cut the handle off during your next cartridge replacement.
Cost & Buying Factors
When evaluating cost and buying factors for a Delta shower handle set screw, prioritize material quality and exact dimensional matching over the lowest price. While the fasteners are inexpensive, purchasing a genuine OEM kit ensures you receive the correct thread pitch, length, and a perfectly sized hex wrench.
Essential Purchasing Considerations
Before heading to the hardware store or ordering online, consider a few variables that will save you time and frustration during your repair project.
- Model Identification: Check if you have a Monitor 13, 14, or 17 series. The 13/14 series generally uses the 1/4″-28 screw, while older models may differ.
- Kit vs. Individual: Decide if you need just the screw or the entire handle button cover and wrench assembly (Delta part #RP26865).
- Drive Type: Ensure the screw requires a hex (Allen) drive. Avoid slotted or Phillips head set screws, as they cannot generate enough torque in this tight space.
- Retailer Reliability: Buy from dedicated plumbing supply stores or verified online OEM dealers to avoid receiving low-grade, easily strippable metal.
NTSS Pro Tip: Take your shower handle and the old screw (if you have it) directly to the hardware store’s thread-checker board. This guarantees you walk out with the exact 1/4-28 or #10-24 match without second-guessing.
Conclusion
Securing your Delta shower handle with the correct size set screw is a minor but critical maintenance task that ensures reliable daily operation. By identifying whether you need a 1/4-28 or #10-24 stainless steel fastener, you can permanently eliminate handle wobble and protect your valve cartridge.
Final Thoughts on Shower Handle Maintenance
A functioning shower depends heavily on this single, tiny piece of hardware. Properly sourcing and installing the right set screw ensures your bathroom fixtures remain in top condition.
- Verify Size: Always confirm the 1/4-28 x 5/16″ or #10-24 x 1/2″ requirement for your specific Delta model.
- Choose Stainless: Never compromise on material; stainless steel prevents rust and seizing.
- Install Carefully: Use the correct 1/8″ or 3/32″ Allen wrench to avoid stripping the delicate hex head.
- Maintain Regularly: Periodic checks and minor lubrication will extend the life of the handle assembly indefinitely.
NTSS Pro Tip: Keep the Allen wrench that comes with your replacement kit taped to the inside of your bathroom vanity. You will always know exactly where it is the next time the handle needs a quick adjustment.
